Brand Name : | Aman |
Model Number : | AM45 |
Certification : | CE |
Main Technological parameters
Name | Data | Name | Data |
screw stem diameter | 40mm | Stripping distance | 120mm |
Length/diameter ratio of screw stem (L/D) | 20 | Mould size L ×W | 400x200mm |
Max. theoretical injection capacity | 158cm3 | Min. mould thickness | 180mm |
Max. theoretical injection speed ratio | 60cm3/sec. | Hydraulic system pressure | 14MPa |
Max. distance of screw | 165mm | Lifting height of rotary table | 60mm |
Plasticizing capacity | 12g/s | Cooling consuming volume | 3M3/h |
Injection clamping molding | 300kn | Product scale | 0.005-0.6L |
Opening distance of injection mould | 120mm | Product height | ≤175mm |
Blow molding | 30kn | Product diameter | ≤100mm |
1.Usage:

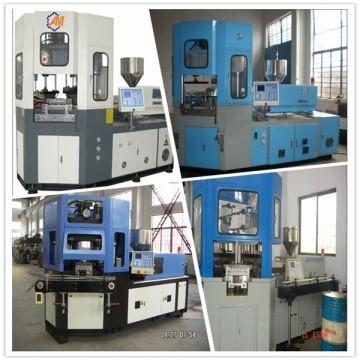

The machine adopts injection blow molding technology and
once-molding technology. It is a bottle blower of making hollow
bottles. It can produce high grade bottle whose bottleneck has high
precision.
2.Application:
It is widely used manufacturing package bottles in pharmacy,food,cosmetics,chemical and other trades.
3.Composition:
The machine is composed of injection section, injection-blowing
molding section, rotary lifting section, stripping section,
hydraulic control section, electric control section, blow control
section and others. An air compressor and two mould temperature
controllers must be bought by consumer or are equipped according to
the contract.
![]() |
