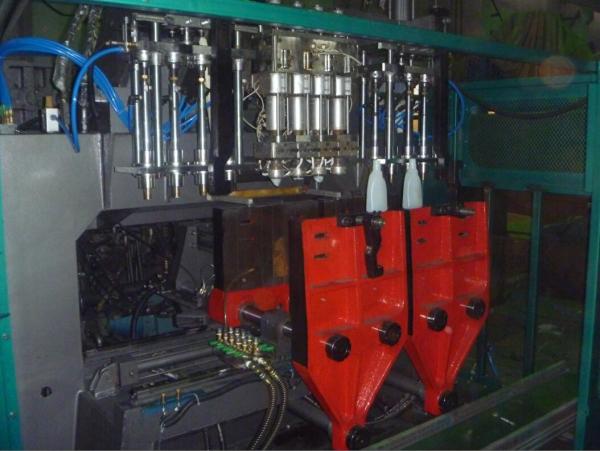

    200 litre plastic drum blow molding machine

    Ask Lasest Price
    Brand Name : Aman
    Model Number : AMB60
    Certification : CE
    • Product Details
    • Company Profile

    200 litre plastic drum blow molding machine


    Parametersdouble station,single diehead
    SpecificationsAM60Dseries
    MaterialPE,PP,PVC,PA….
    Max container capacityL2
    Number of dieset1
    Output(dry Cycle)pc/hr900X2
    Machine Dimension(L×W×H)M3.0x2.2x2.8
    Total weighton5.5
    Clamping UnitAM60Dseries
    Clamping forceKN40
    Platen opening strokemm138-368
    Platen sizemm338x450
    Max mould size(W×H)mm400x400
    Mould thicknessmm140-210
    PowerAM60Dseries
    Max driveKW20.5
    Total powerKW33.9
    Fan power for screwKW0.3
    Air pressureMpa0.7
    Air consumptionm³/min0.6
    Average energy consumptionKW16.5
    Extruder unitAM60Dseries
    Screw diametermm60
    Screw L/D ratioL/D25
    Plasticising capacityKg/hr60
    Number of heating zonezone3
    Extruder heating powerKW8.8
    Extrder driving powerKW15
    DieAM60Dseries
    Number of heating zonezone3…5
    Power of die heatingKW4.6
    Max die-pin diametermm100
    Center distance of double diemm130--150
    Center distance of tetra-diemm60--85
    Upward-Downward of the pedestalAM604Dseries
    Upward-downward distancemm190
    The speed of Upward-downwardmm/min30
    Power supplyAM604Dseries
    VoltageV380/50HZ
    Voltage wave range±5
    Electrical Equipment
    Touch screen man-machine interfaceHITECH
    PLCMITSUBISHI
    TransducerMITSUBISHI
    Temperature controllerMITSUBISHI
    Low pressure electricalYangMing
    RelaySchneider
    Button switchSchneider
    Electricity machineSIEMENS
    ContactorSchneider
    Hydraulic Pressure Part
    Oil pumpYUKEN
    Hydraulic pressure valveYUKEN
    Hydraulic pressure tubeKIMBERLEV
    AirproofVALAVA
    Air Drive Part
    Air diver componentFESTO

    Quality 200 litre plastic drum blow molding machine for sale
