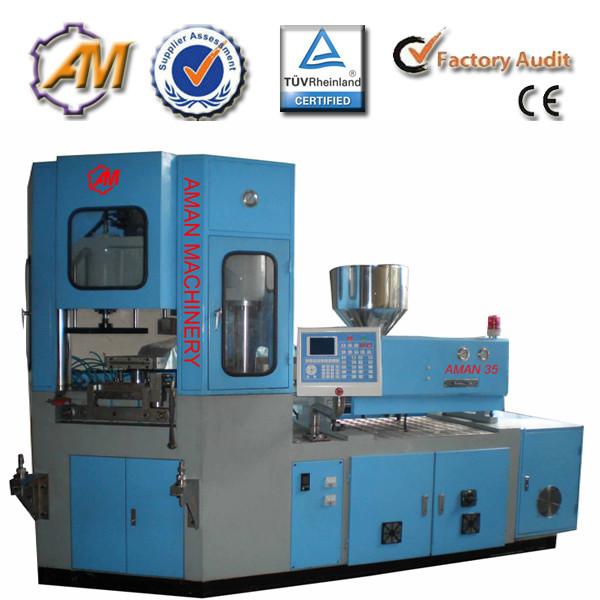

    AM35 Injection blow molding machine AM35

    Ask Lasest Price
    Brand Name : Aman
    Model Number : AM35
    Certification : CE
    • Product Details
    • Company Profile

    AM35 Injection blow molding machine AM35

    AM35 Injection blow molding machine
    Main Technical Parameters

    Item

    Unit

    Data

    No

    Item

    Unit

    Data

    1

    Dia of screw

    Mm

    40

    13

    Die-heating power

    Kw

    automation

    2

    Max. the retical capacity

    Cm3

    220

    14

    Pressure of hydraulic system

    Mpa

    14

    3

    Total power for cylinder-heating

    Kw

    6.5

    15

    Max. working pressure of comp. air

    Mpa

    1.2

    4

    Clamping force of injection mold

    Qty

    3

    16

    Discharge rate of compressed air

    M3/min

    >0.8m3/min

    5

    Clamping force of injection mold

    Kn

    350

    17

    Consumption of cooling water

    M3/h

    3

    6

    Opening stroke

    Mm

    120

    18

    Dimension of machine(L×W×H)

    Mm

    3100*1100*2200

    7

    Clamping force of blow mold

    Kn

    30

    19

    Machine weight

    T

    approximately 3.0

    8

    Opening stroke of blow mold

    mm

    120

    20

    Range of formability products

    L

    0.003-0.6

    9

    Idle time

    S

    4

    21

    Height of formability products

    Mm

    ≤175mm

    10

    Max. plate size of die(L*W)

    Mm

    300*200

    22

    Dia of formability products

    Mm

    ≤100mm

    11

    Min. die thickness

    Mm

    180

    23

    Conveyer belt Motor power

    Kw

    0.1

    12

    Motor power

    Kw

    15

    24

    Total power

    kw

    25

    Cavity number of one mold corresponding to products volume.(for references)


    Product volume(ml)

    8

    15

    20

    40

    60

    80

    100


    Cavity quantity

    8

    6

    6

    5

    5

    4

    3


    1. bottle mouth and thread are of precise measurement, enabling well close match with safe bottle cap.
    2. plastic medicine bottle's safe thread can be molding directly, act in connect with safe bottle cap.
    3. the size and weight of the product can calculate and design clearly and meet the requirment of the design without any deviation.
    4. the joint sseam on the bottle body is smooth, no scrap rubber
