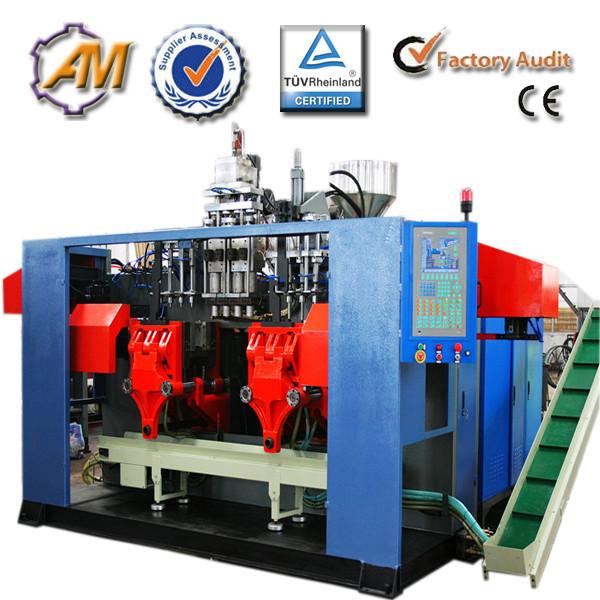

    PS extrusion blow mould machine AMB70

    Ask Lasest Price
    Brand Name : Aman
    Model Number : AMB70
    Certification : CE
    • Product Details
    • Company Profile

    PS extrusion blow mould machine AMB70

    PS extrusion blow mould machine


    Parameters
    SpecificationsAM70series
    MaterialPE,PP….
    Max container capacity3--5--10L
    Number of die1set
    Output(dry Cycle)1000pc/hr
    Machine Dimension(L×W×H)3.5x2.2x2.8M
    Total weigh7.1ton
    Clamping UnitAM70series
    Clamping force105KN
    Platen opening stroke200-550mm
    Platen size500x550mm
    Max mould size(W×H)550x500mm
    Mould thickness210-300mm
    PowerAM70series
    Max drive27.5KW
    Total power48.5KW
    Fan power for screw0.54KW
    Air pressure0.7Mpa
    Air consumption0.6m³/min
    Average energy consumption18.5KW
