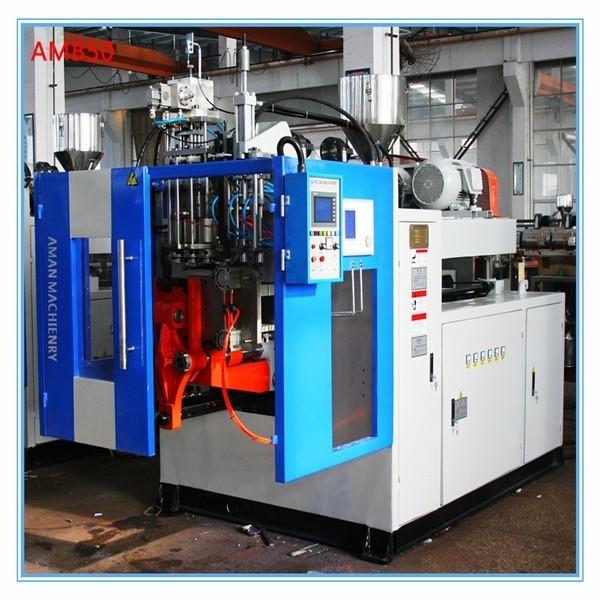

plastic bottle extrusion blow moulding machine AMB50

AMAN MACHINERY
Contact Now
    Buy cheap plastic bottle extrusion blow moulding machine AMB50 from wholesalers

    Buy cheap plastic bottle extrusion blow moulding machine AMB50 from wholesalers
    • Buy cheap plastic bottle extrusion blow moulding machine AMB50 from wholesalers

    plastic bottle extrusion blow moulding machine AMB50

    Ask Lasest Price
    Brand Name : Aman
    Model Number : AMB50
    Certification : CE
    • Product Details
    • Company Profile

    plastic bottle extrusion blow moulding machine AMB50


    ParametersDouble station,single die-head
    SpecificationsAM-501Dseries
    MaterialPP,PE(HD,LD)….
    Max container capacityL0.6L
    Number of dieset4
    Output(dry Cycle)pc/hr900X2
    Machine Dimension(L×W×H)M3.0x2.2x2.8
    Total weighton6
    Clamping UnitAM501Dseries
    Clamping forceKN40
    Platen opening strokemm138-368
    Platen sizemm338x450
    Max mould size(W×H)mm400x400
    Mould thicknessmm140-210
    PowerAM501Dseries
    Max driveKW16.5
    Total powerKW27.9
    Fan power for screwKW0.3
    Air pressureMpa0.7
    Air consumptionm³/min0.6
    Average energy consumptionKW12.5
    Extruder unitAM501Dseries
    Screw diametermm50
    Screw L/D ratioL/D25
    Plasticising capacityKg/hr30
    Number of heating zonezone3
    Extruder heating powerKW6.8
    Extruder driving powerKW11
    DieAM501Dseries
    Number of heating zonezone3…5
    Power of die heatingKW4.6
    Max die-pin diametermm30
    Center distance of double diemm
    Center distance of tetra-diemm60--85
    Upward-Downward of the pedestalAM501Dseries
    Upward-downward distancemm190
    The speed of Upward-downwardmm/min30
    Power supplyAM501Dseries
    VoltageV380/50HZ
    Voltage wave range±5
    Electrical Equipment
    Touch screen man-machine interfaceHITECH
    PLCMITSUBISHI
    TransducerMITSUBISHI
    Temperature controllerMITSUBISHI
    Low pressure electricalYangMing
    RelaySchneider
    Button switchSchneider
    Electricity machineSIEMENS
    ContactorSchneider
    Hydraulic Pressure Part
    Oil pumpYUKEN
    Hydraulic pressure valveYUKEN
    Hydraulic pressure tubeKIMBERLEV
    AirproofVALAVA
    Air Drive Part
    Air diver componentFESTO

    Quality plastic bottle extrusion blow moulding machine AMB50 for sale
